These procedure steps will be followed on the simulator

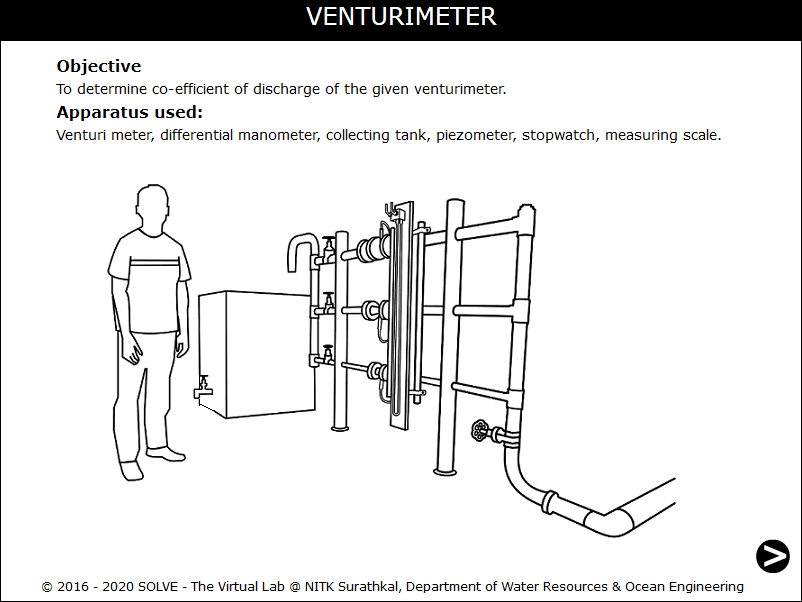

1. Open Venturimeter experiment, a window will appear as shown.

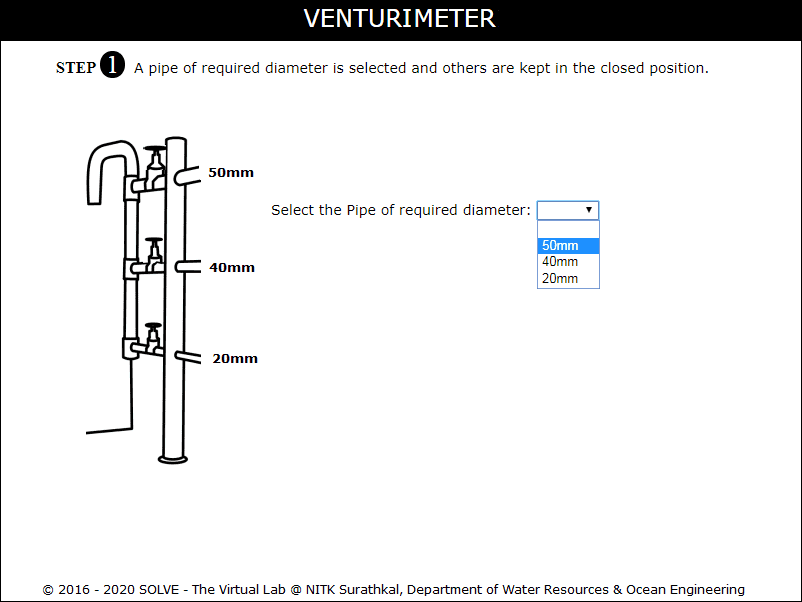

2. Select the required diameter of pipe, then click NEXT button.

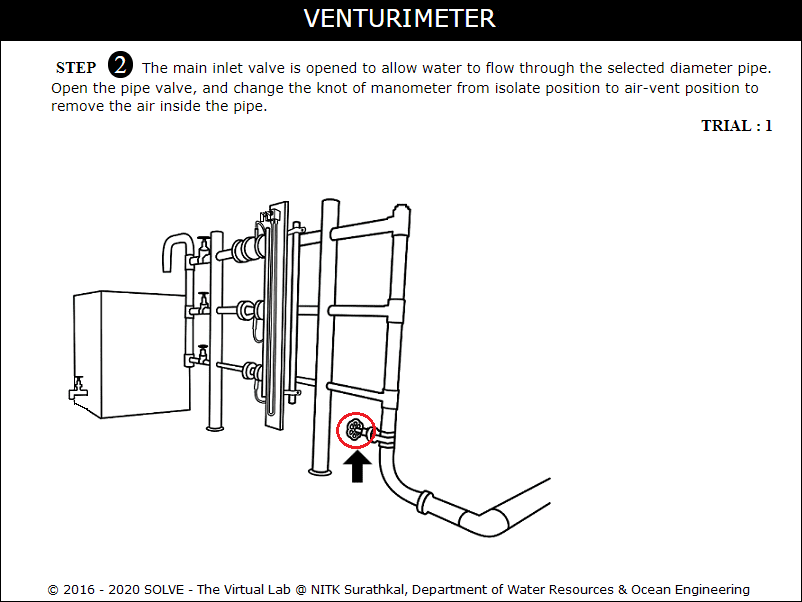

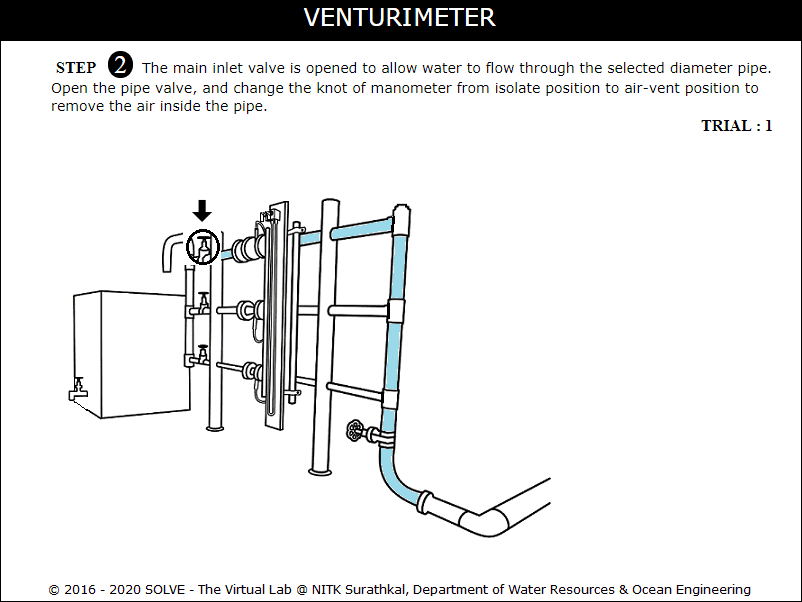

3. Click on the main inlet valve to allow the flow through it.



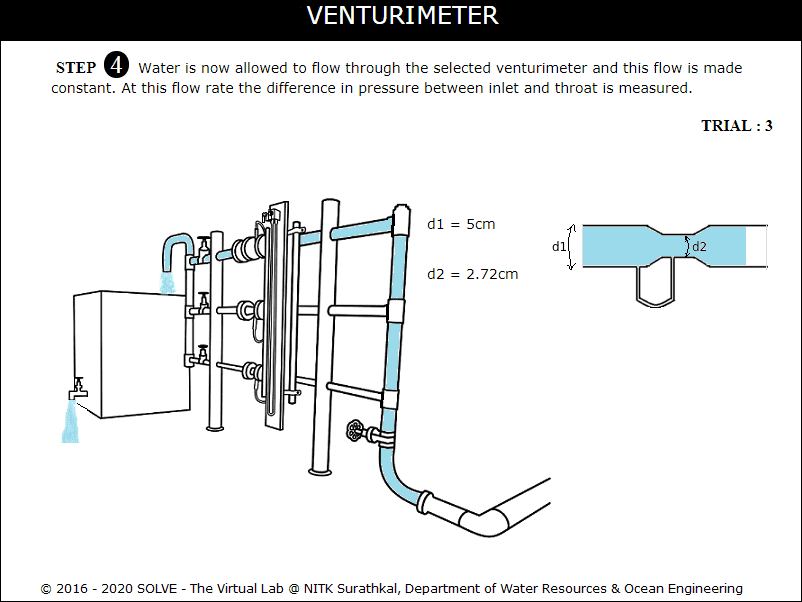

4. Click on pipe inlet valve to allow the flow through it.

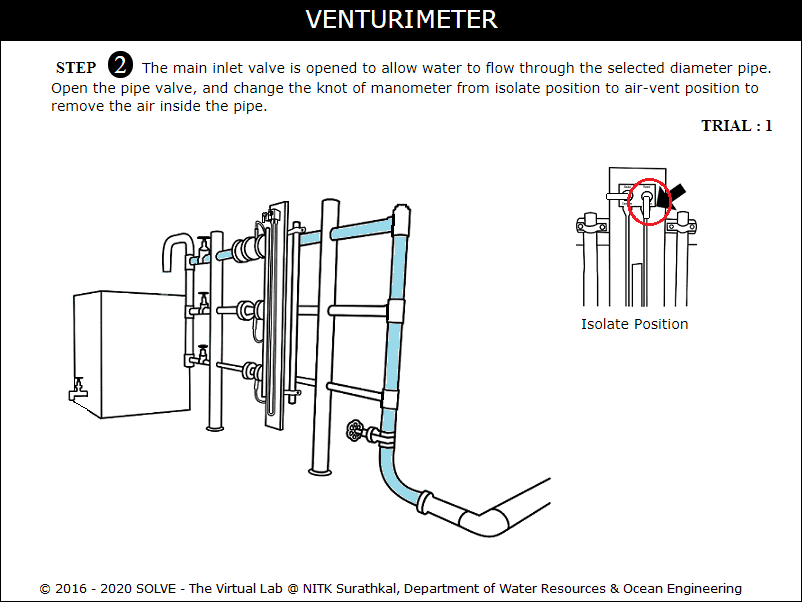

5. Click on manometer knot to change it from isolated position to air-vent position to remove air bubbles and again click to change it to read position.

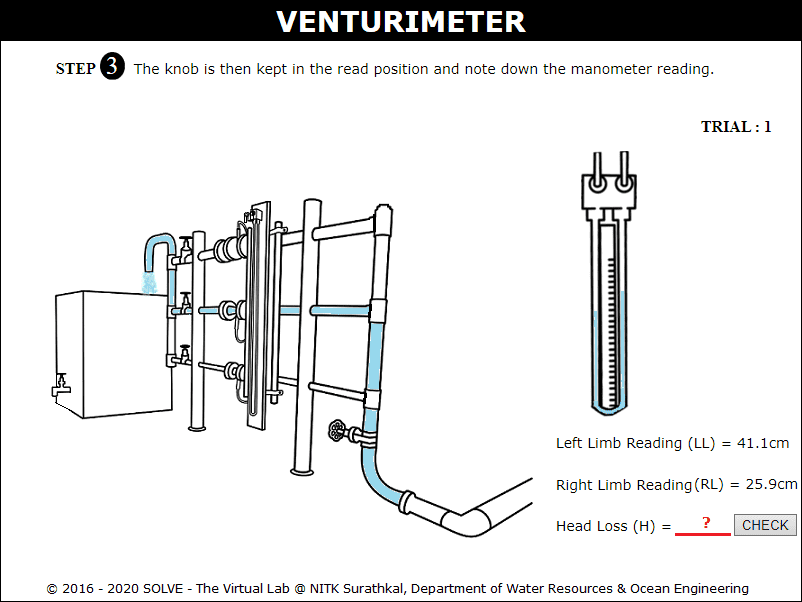

6. Here the manometer reading is noted down. The calculate the value of Head Loss.

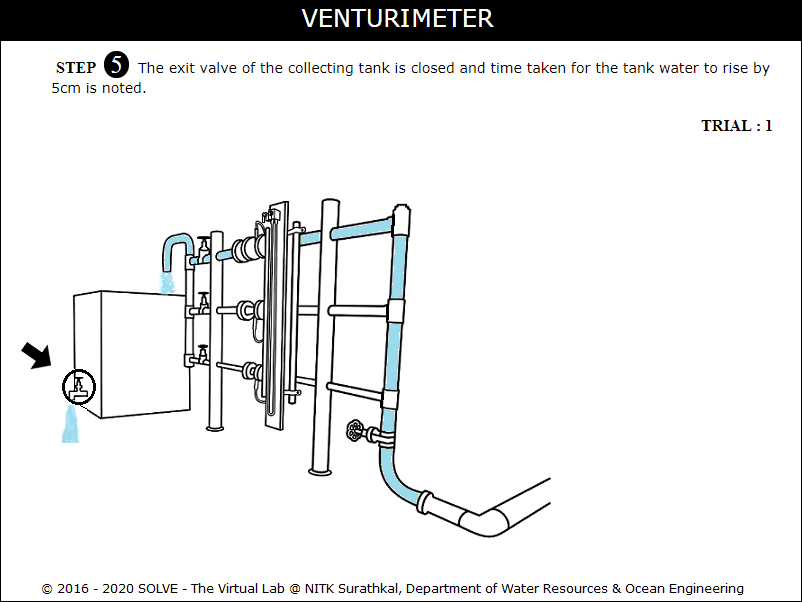

7. Click on tank outlet valve to close it to measure the discharge.

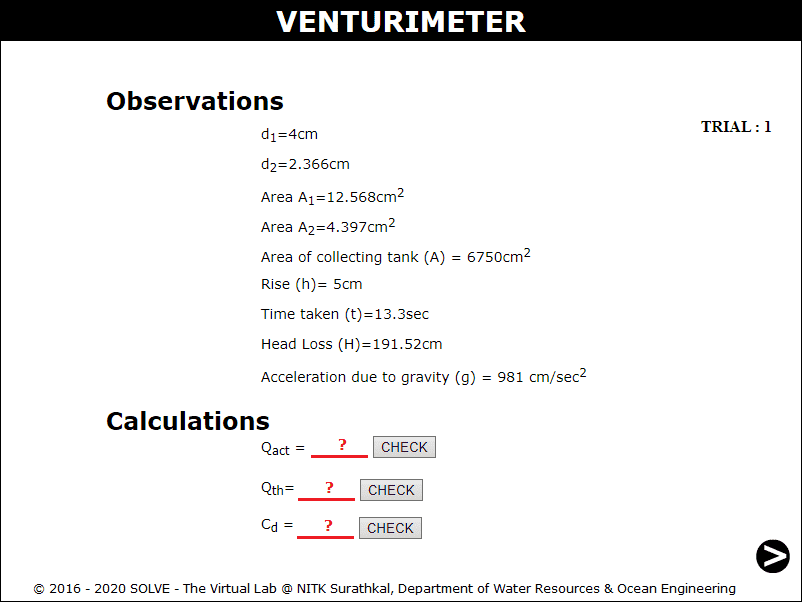

8. The observation and calculations of the trial is given here.



9. Calculate actual discharge, theoretical discharge and coefficient of discharge. Repeat the same procedure for other trials.
