These procedure steps will be followed on the simulator

1. Open Impact of Jet on Vanes experiment, a window will appear as shown.

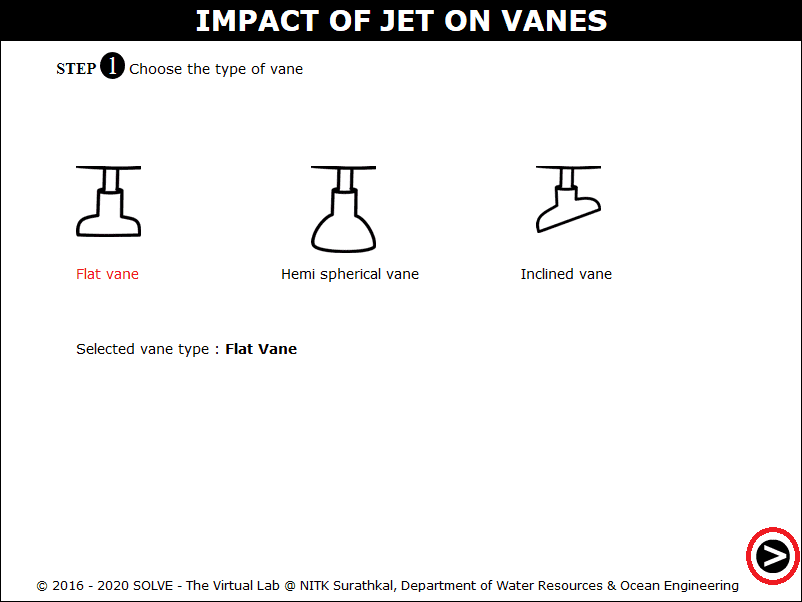

2. Select the type of vanes to be used in the experiment, then click NEXT button

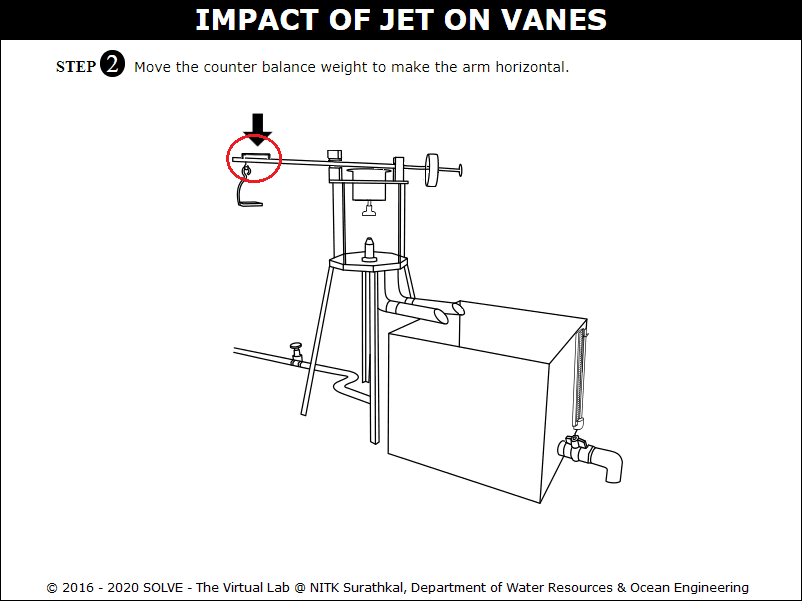

3. Click on spirit level, and then click on counter balance to move it and make the arm horizontal.

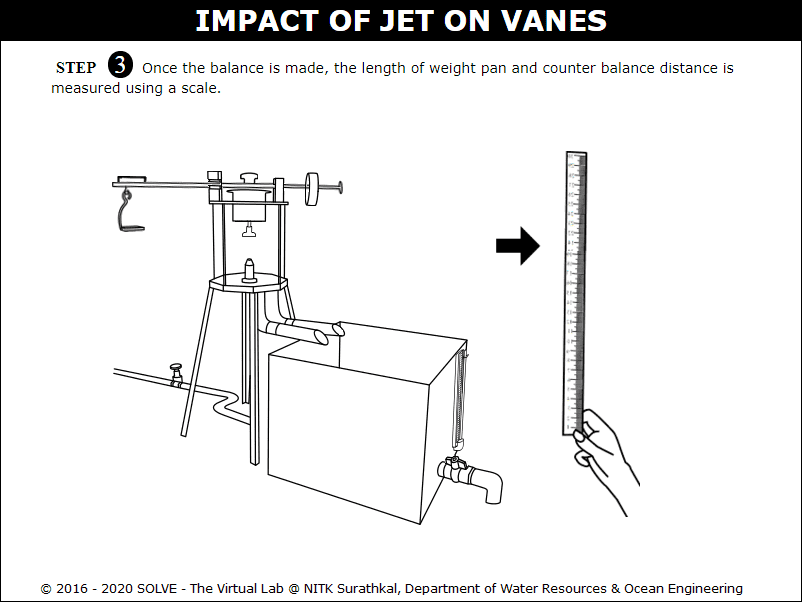

4. Here to measure the length of weighing pan and counter balance distance click on scale, then click NEXT button.



5. Click on pan, the region will get zoomed, again click on weight to add it to the weighing pan.

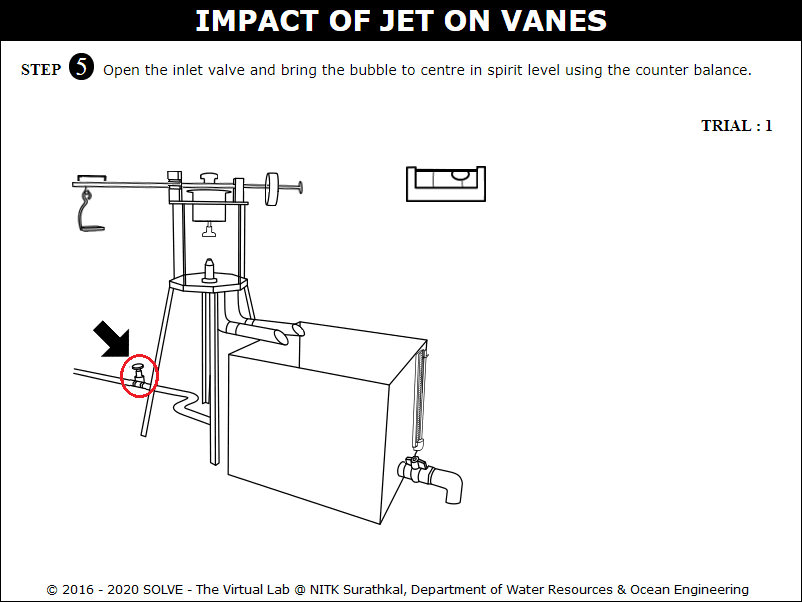

6. Now open the inlet valve and adjust the counter balance to make arm horizontal.

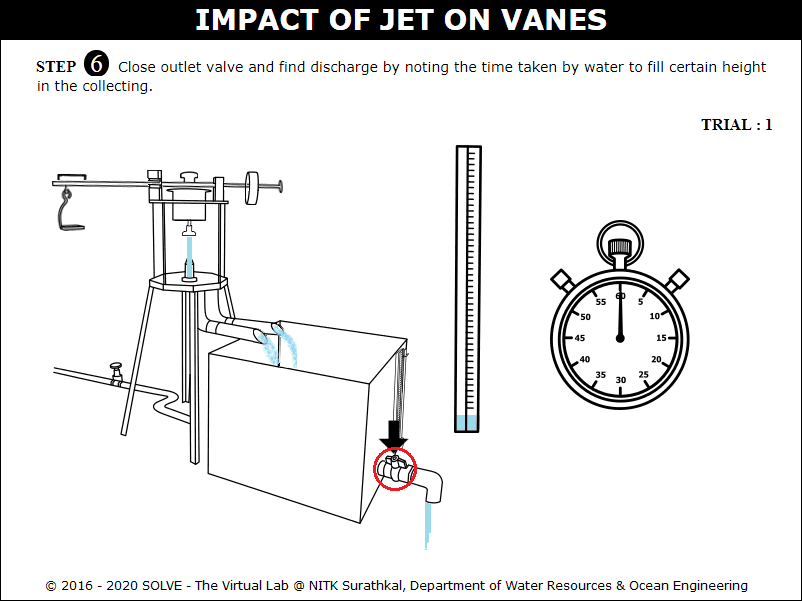

7. Click on tank outlet valve to measure the discharge by closing the valve and record time taken for 5cm rise.

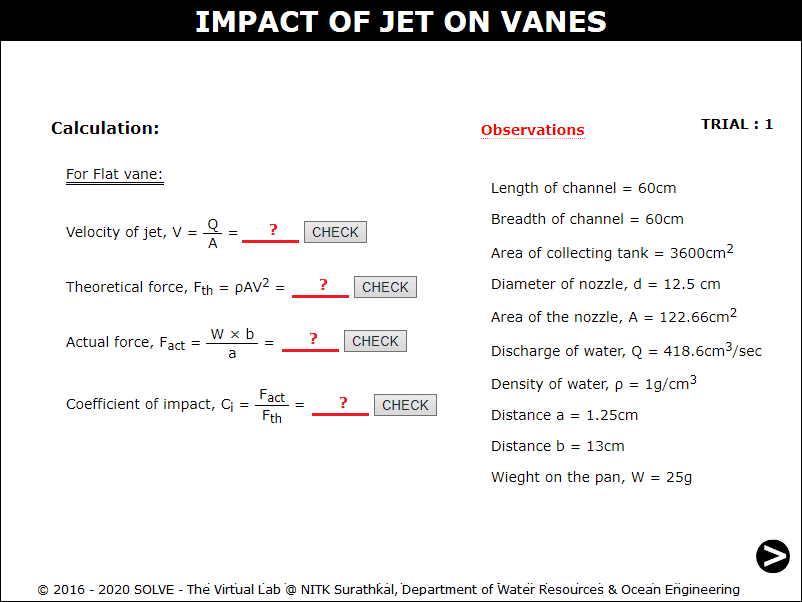

8. The observation and calculation of the trial is given here. Now repeat the same procedure for other trials.

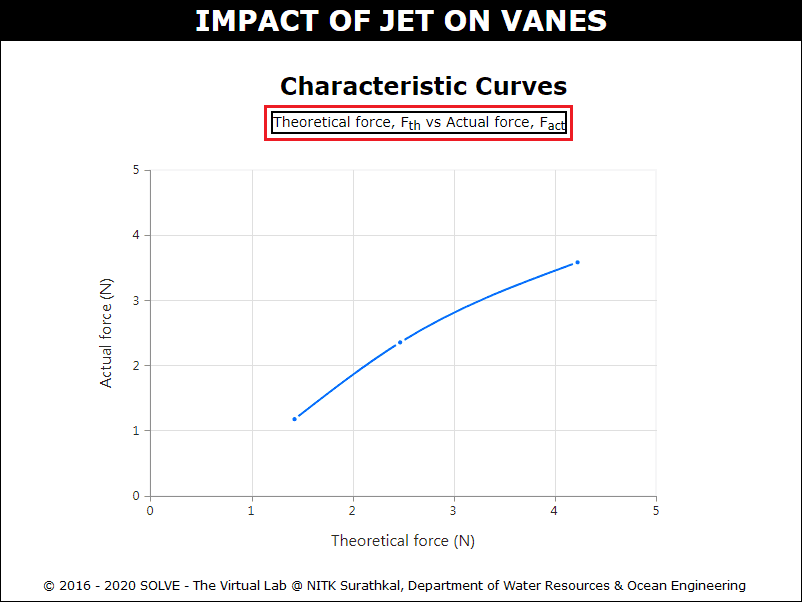

9. Click on graph title to plot the graph.
